Tk-Music

Github Repo

Quick Glance

Main-Harmonica

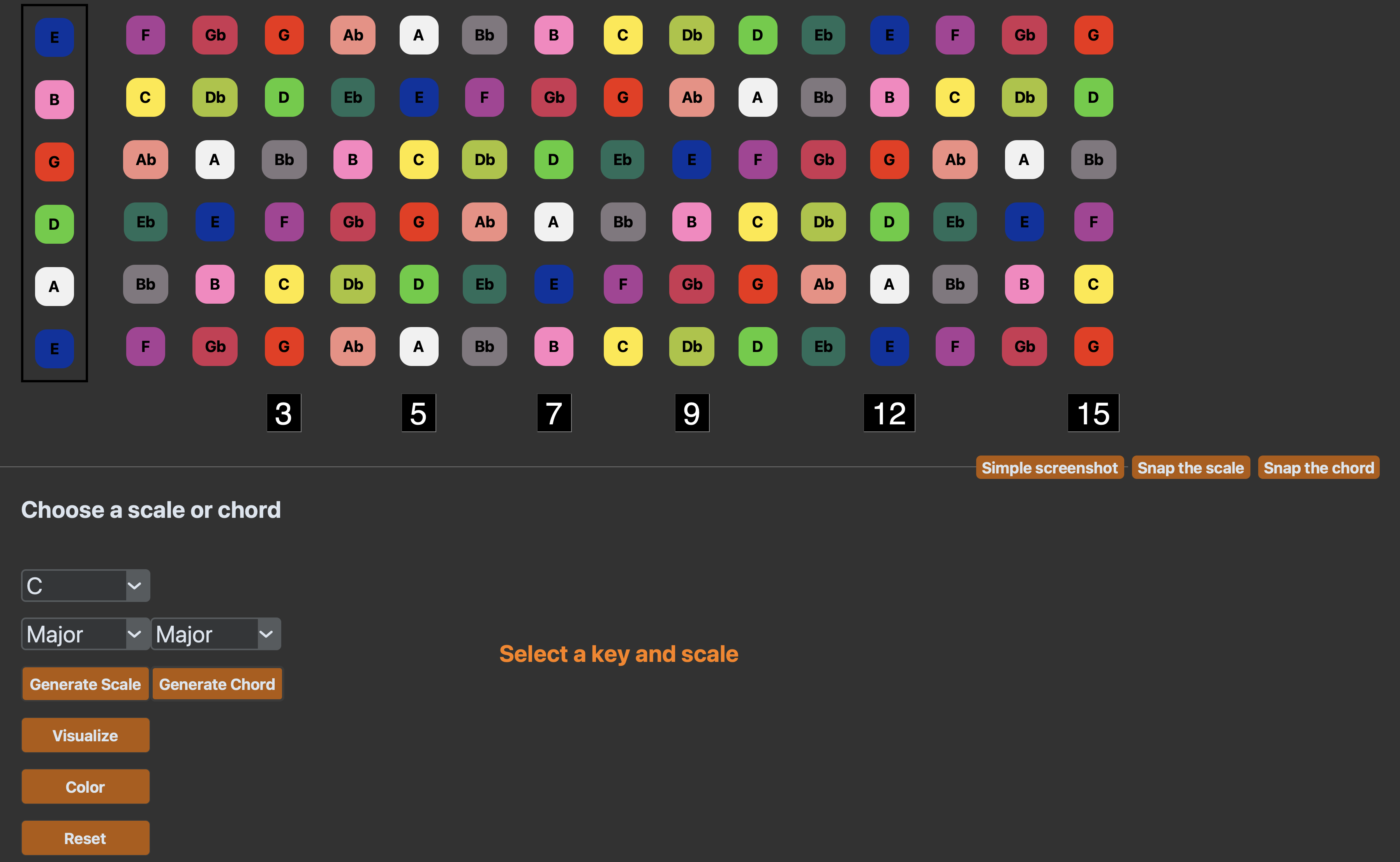

Main-Guitar



Why?

I started learning musical instruments relatively late in life. Keys, modes, intervals and whatever music notions were all foreign concepts and frankly overwhelming ones. I was interested in music theory and moreso trying to understand links between harmonica, guitar and piano. I was asking questions along the lines of: if I play a C4 key on the piano, where would that exact note be located on the guitar and harmonica? How would I play a blues scale on each of these instruments? What the heck is the Phrygian mode?



Brief lesson

Half-steps, degrees and intervals.

For reference and simplicity, the piano is a great instrument to demonstrate distance between notes. On a piano, there are white and black keys. The smallest distance you can travel on a piano is called a half-step or semitone. It’s the smallest hop your finger can make. If I do 2 hops, that’s 2 half-steps, 3 is 3 half-steps etc. You can also say that 2 half-steps are a whole step. Consequently, 3 hops are either 3 half-steps or 1 whole step and 1 half-step. In my opinion, it’s much easier to initially see everything as half-steps and then start converting and calculating the way you want.

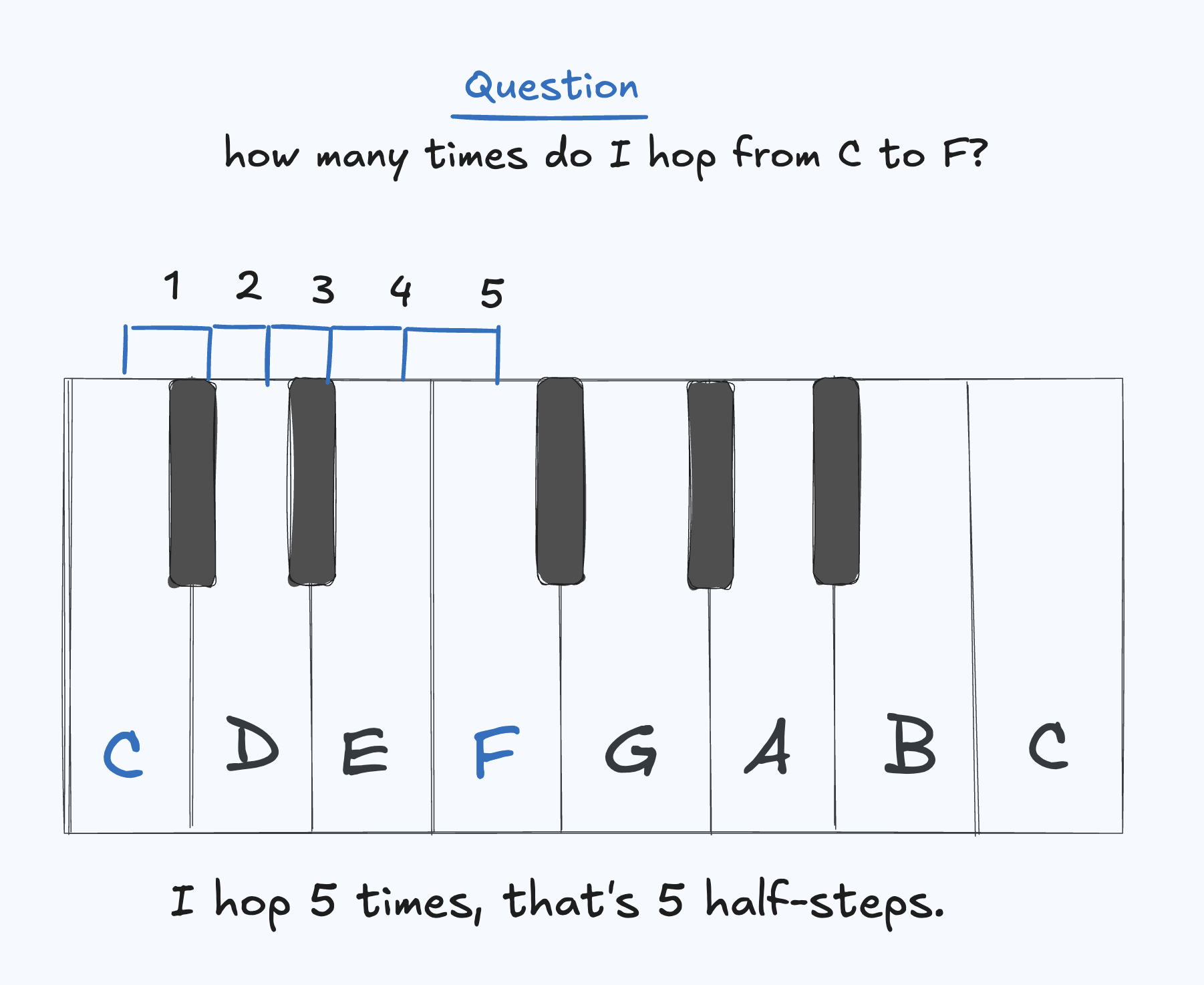

Half-steps



That distance I keep mentioning is commonly called a music interval. Every interval has its own name depending on the number of half-steps. It can also be represented by another notation called a music degree. Degrees are what you’ll commonly see used with scales. I’ve included a non-exhaustive table for comparison.



Half StepsInterval NameDegree
0Perfect Unison1
1Minor 2ndb2
2Major 2nd2
3Minor 3rdb3
4Major 3rd3
5Perfect 4th4
6Tritone#4 / b5
7Perfect 5th5
8Minor 6thb6
9Major 6th6
10Minor 7thb7
11Major 7th7
12Octave8



Scales and Chords

Essentially, a scale is an arrangement of intervals. The major scale for any key is:



That’s pretty long, right? Well, in that case, it’s a good idea to use degrees instead.



A chord can be seen as a subset of a scale. The major chord is composed of



I learned my lesson, so I’ll use:

Personally, I like seeing the degrees and the intervals in parallel. That’s how I integrated them in my GUIs. By the way, if you’re struggling with modes, just see them as another scale, another formula.



Key Class

Motivation: Python rules

I thought Python was a great language to use because of the power of dictionaries, lists and tkinter. The libraries I used were mss and customtkinter, but I didn’t use any music libraries for the sake of reinforcing my learning. I also like the fact that practicing doesn’t require any internet, because you could just open a terminal and run a command to launch the GUIs.

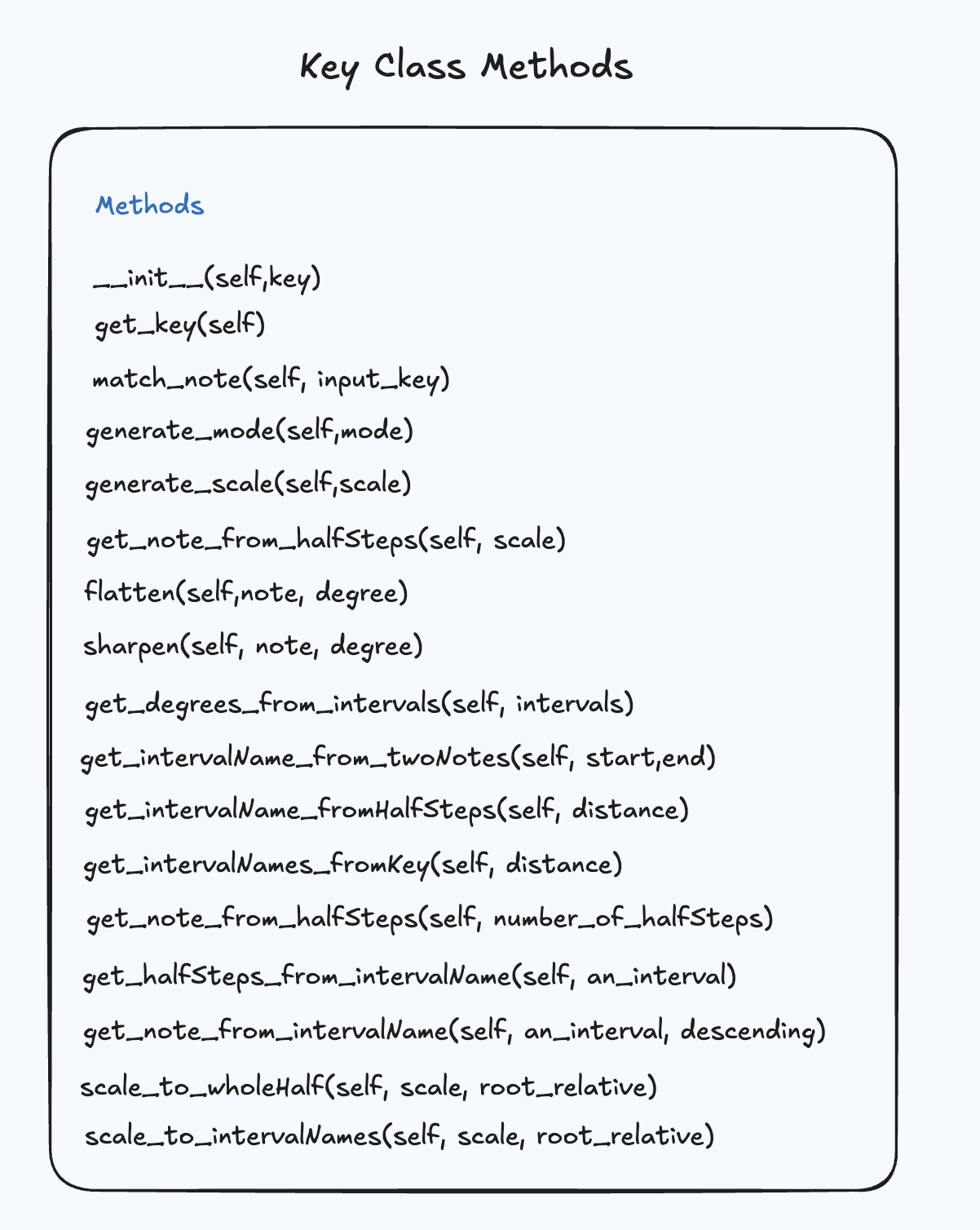

Key Class

Before implementing the Harmonica & Guitar GUIs, we need a main class that could handle any musical operations on any key. I asked myself the following questions before implementing the methods:

The whole idea becomes to play with half-steps and convert them appropriately to whatever musical unit you need.



Key-Class



Demo: Generating notes from scales

I instantiate an object Key(‘C’), and I want to generate the scale of my choice in that key. The intervals in my scales are represented in half-steps. The root is included by adding 0 in the beginning of the list. In the generate_scale method, a list comprehension that calls get_note_from_halfSteps gets you each note you need in that scale.

# Inside constants.py

NOTES = ["C", "C#/Db", "D", "D#/Eb", "E", "F", "F#/Gb", "G", "G#/Ab", "A", "A#/Bb", "B"]
SCALES = {

    "Major": [0,2,4,5,7,9,11],
    "Minor": [0,2,3,5,7,8,10],
    "Major Pentatonic": [0,2,4,7,9],
    "Minor Pentatonic": [0,3,5,7,10],
    "Major Blues": [0,2,3,4,7,9],
    "Minor Blues": [0,3,5,6,7,10],
    "Dorian": [0,2,3,5,7,9,10],
    "Phrygian": [0,1,3,5,7,8,10],
    "Lydian": [0,2,4,6,7,9,11],
    "Mixolydian": [0,2,4,5,7,9,10],
    "Aeolian": [0,1,3,5,7,8,10],
    "Locrian": [0,1,3,5,6,8,10]

}

# Inside key.py

def get_note_from_halfSteps(self, number_of_halfSteps):

        if not isinstance(number_of_halfSteps, int):
            raise ValueError("The half steps must be an integer")

        note = NOTES[(NOTES.index(self.key) + number_of_halfSteps) % len(NOTES)]
        return note

def generate_scale(self, scale):

        if scale not in SCALES:
            raise ValueError(f"The scale {scale} does not exist")

        generated_scale = [self.get_note_from_halfSteps(x) for x in SCALES[scale]]
        return generated_scale



Key GUI

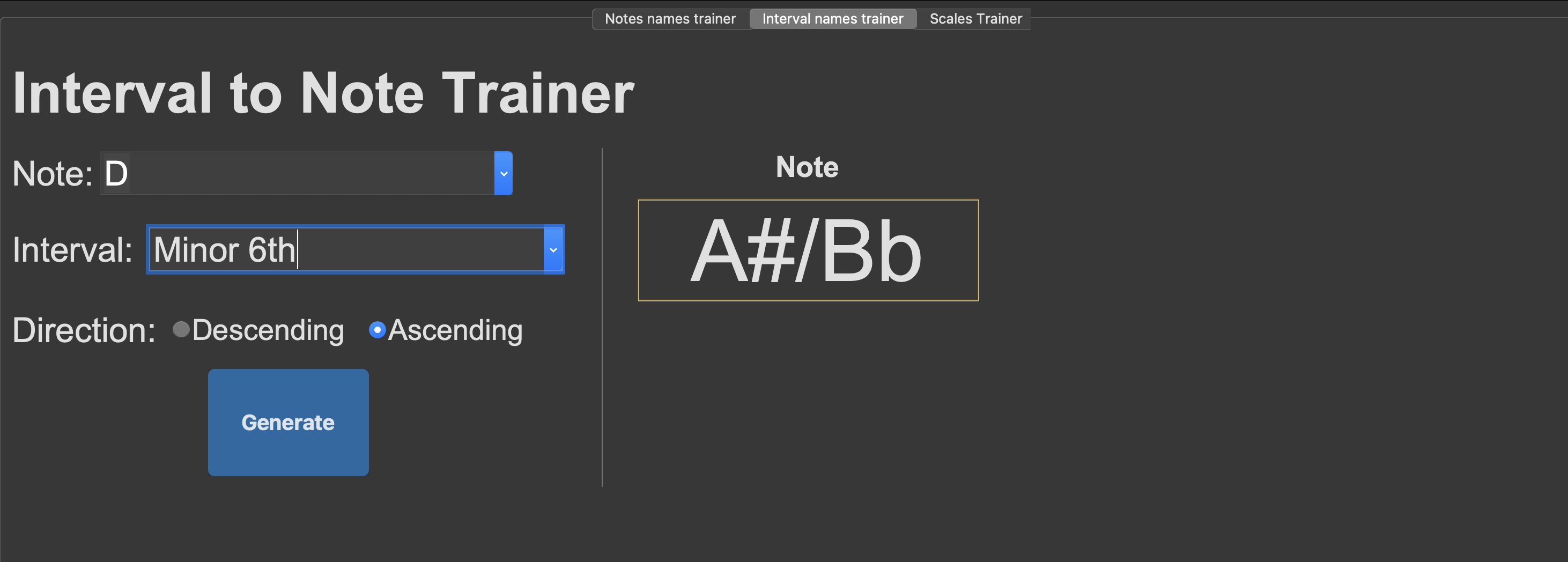

Using the Key class, I built a Key GUI. With it, I can:

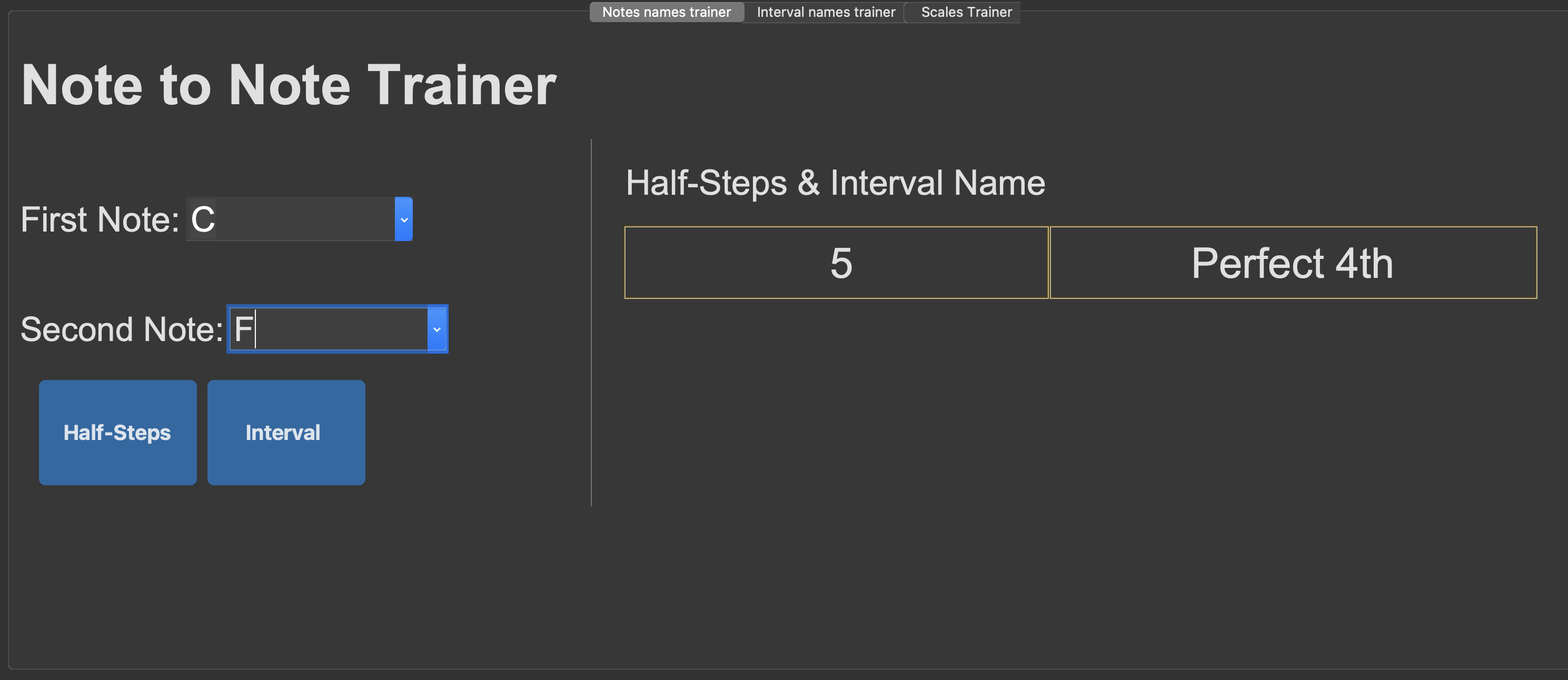

c-to-f   d-minor-6th

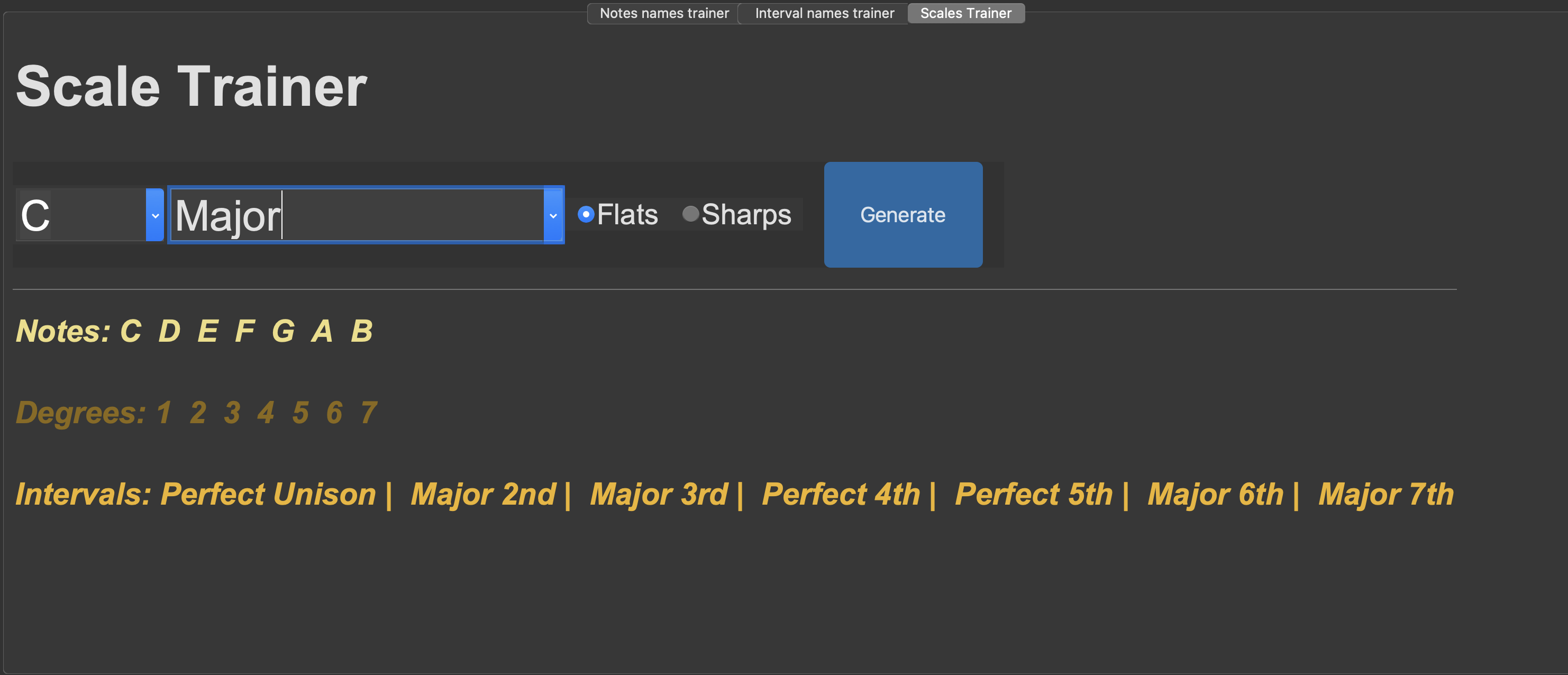

  c-major-scale



Harmonica Class

Turning a harmonica into a dictionary

Harmonicas are built with a specific key and the notes change depending on the key. However, the underlying logic stays the same. The diatonic harmonica has 10 holes. You can either blow air through a hole or draw air into one to produce a note. An effective way to figure out which notes are produced on the harmonica is to view each hole in terms of intervals relative to the harmonica’s key. For blow notes, hole 1 is the root which means the key of the harmonica , hole 2 is a Major 3rd and Hole 3 is a Perfect 5th. Blow notes cycle every 3 holes, so a blow on hole 4 is also the root. Breaking News! Blow notes form a major chord!



For example, If I have a C harmonica, the blow notes on hole 1-2-3 are respectively C-E-G. Blow 4 is also a C. The blow on hole 4 corresponds to a C4 which is the middle C of the piano, and the blow on hole 1 is a C3, the C an octave lower. Draw notes are less direct to catch, take a look at the code if you get the chance.



That being said, I can instantiate a Harmonica object with a Key object in order to use the methods provided by the Key class.

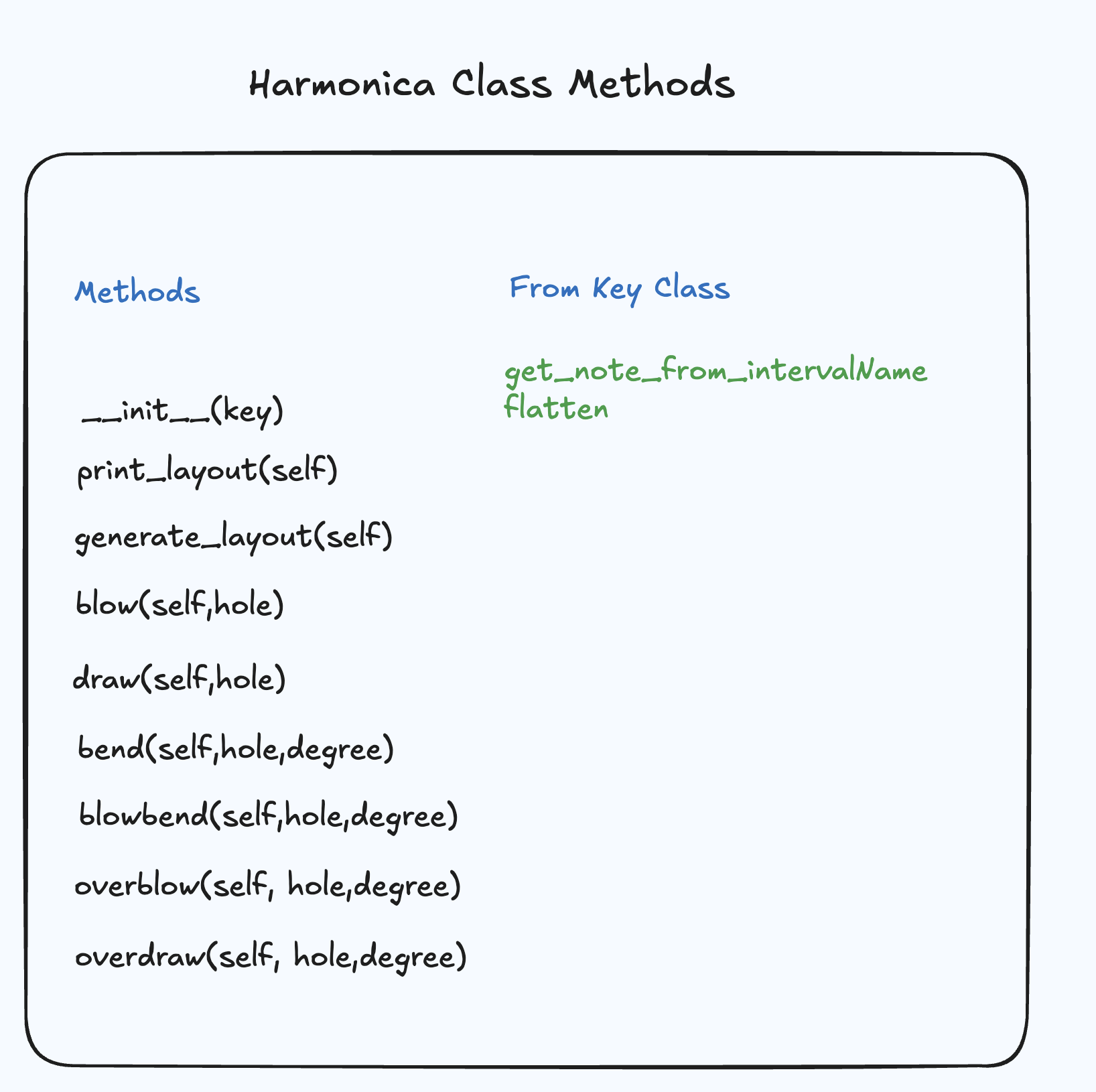

Harmonica Class



The harmonica can be represented as a dictionary with:

 Hole              Actions
 1:                {'blow': 'E', 'draw': 'F#', 'bend': 'F'}



Here’s a portion of the code that shows how I populated the harmonica dictionary.

# harmonica.py

BLOW_NOTES = (
    ["Perfect Unison", "Major 3rd", "Perfect 5th"] * 3 + ["Perfect Unison"]
)

DRAW_NOTES = [
    "Major 2nd", "Perfect 5th", "Major 7th",
    "Major 2nd", "Perfect 4th", "Major 6th",
    "Major 7th", "Major 2nd", "Perfect 4th", "Major 6th"
]

harmonica = {}

# Generate the blow and draw notes based on intervals
blow_notes = [self.key.get_note_from_intervalName(interval, False) for interval in BLOW_NOTES]
draw_notes = [self.key.get_note_from_intervalName(interval, False) for interval in DRAW_NOTES]

# Fill the harmonica with basic blow and draw notes
# Holes are numbered from 1 to 10
for i in range(1, 11):
    harmonica[i] = {
        "blow": blow_notes[i - 1],
        "draw": draw_notes[i - 1]
    }

# Bends, overblows and overdraws are not shown here.

# To actually see the note you're playing
 def blow(self, hole):

        if not isinstance(hole,int) or  hole < 1 or hole > 10 :
         raise ValueError("Hole number must be an integer between 1 and 10.")
        return self.harmonica[hole]["blow"]

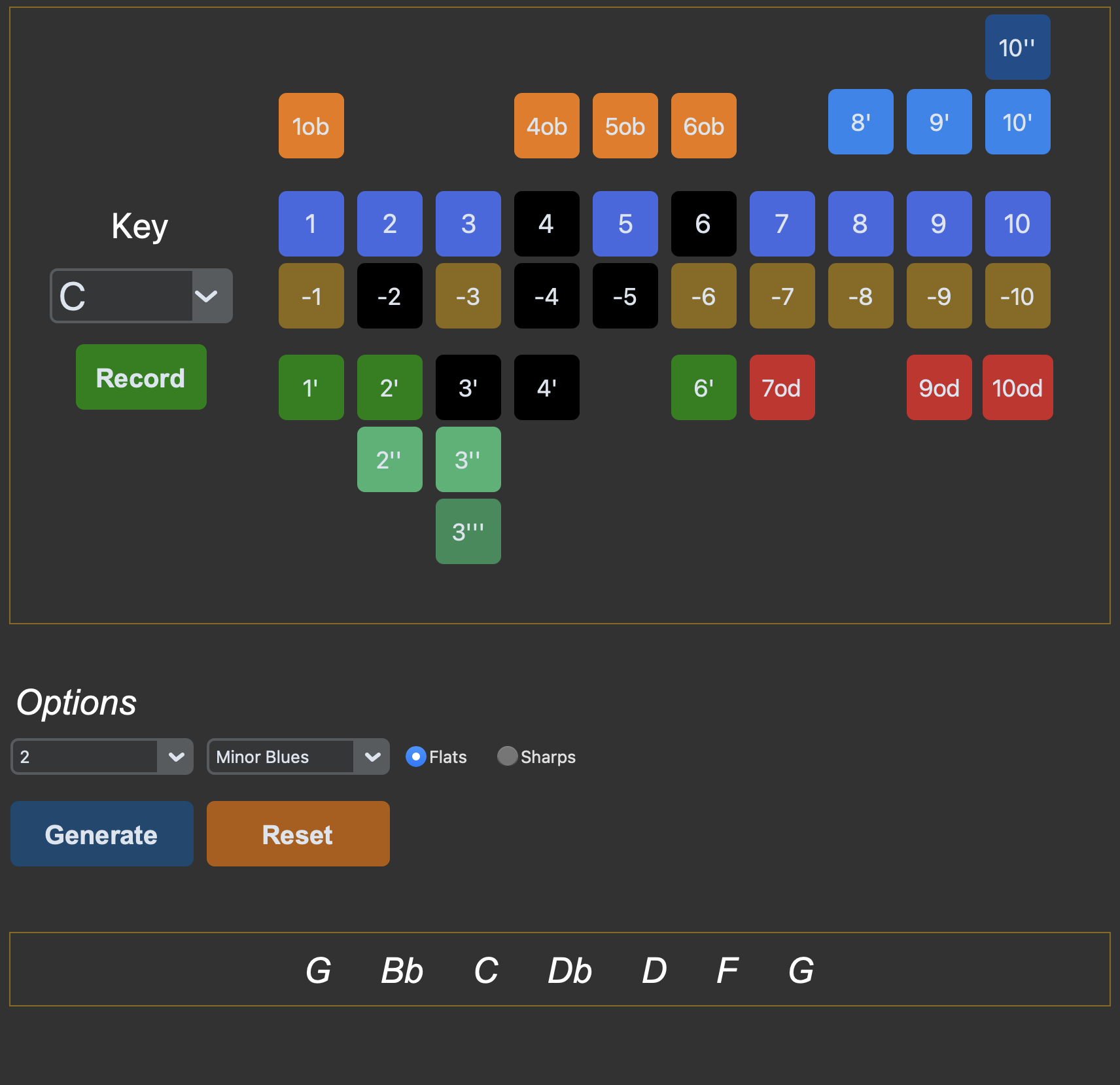

Scales on the harmonica

One challenge when learning the harmonica is figuring out what a “position” means and how it relates to the key your harmonica is in. There are 3 positions any one learning the mouth organ (comical term) gets exposed to.



Suppose that you’re in the key of C and you want to play the major pentatonic scale for each position. In position 1, you’re playing a C major pentatonic, but in position 2, you’re playing a G major pentatonic even though your harmonica is in the key C. When I was endlessly navigating online for explanations, it only clicked for me when I realized that the positions correspond to different keys even though your harmonica is in a specific key.

An interesting problem I ran into here was trying to figure out how to integrate scales in the harmonica GUI with those previously dicussed positions in mind. I couldn’t blindly map the notes of the scales I wanted to generate to the appropriate holes. I had to see the notes of the scales relative to the position I was playing in. I ended up hard-coding them.


# harmonica.py

FIRST_POSITION_SCALES = {
    "Major": [(4,"blow"), (4, "draw"), (5, "blow"), (5,"draw"), (6, "blow"), (6, "draw"), (7, "draw"), (7, "blow")],
    "Major Pentatonic": [(4,"blow"), (4, "draw"), (5, "blow"), (6, "blow"), (6, "draw"), (7,  "blow")]

}

SECOND_POSITION_SCALES = {
    "Major": [(2, "draw"), (3, "bend", 2), (3, "draw"), (4, "blow"), (4, "draw"), (5, "blow"), (5, "overblow", 1), (6, "blow")],
    "Minor Blues": [(2, "draw"), (3, "bend",1), (4, "blow"), (4, "bend",1),(4,"draw"), (5,"draw"), (6,"blow")],
    "Myxolidian": [(2, "draw"), (3, "bend", 2), (3, "draw"), (4,"blow"),(4,"draw"),(5,"blow"),(5,"draw"),(6,"blow")]
}

THIRD_POSITION_SCALES= {
    "Major Pentatonic": [(1,"draw"), (2, "blow"), (2,"bend",1), (3,"bend",2),(3,"draw"),(4,"draw")],
}

 def generate_1st_position_scale(self,scale):

        result = []
        for entry in FIRST_POSITION_SCALES[scale]:

            if len(entry) == 3:

                result.append(self.layout[entry[0]][entry[1]][entry[2]-1])
            else:

                result.append(self.layout[entry[0]][entry[1]])
        # Result
        return result

# And more...



Using the harmonica class, I built the Harmonica GUI using tk, ttk and CustomTkInter.

The most intere, e.g., (4, “blow) from the Harmonica class to buttons belonging to my GUI class. To do so, I created a dictionary of buttons with the actions acting as keys. Furthermore, every button gets a unique action by adding a lambda function. If we don’t use a lambda function and directly put self.play_blow(i) as a command, it would mean that we’re assigning the result of the function call to the button rather than a reference to the function itself.


buttons = {}
# Adding blow buttons to the buttons
for i in range(1, 11):
            blow_button = self.create_ctkbutton(
                self.harmonica_frame,
                a_text=f"{i}",
                # Use an anonymous function here!
                a_command=lambda i=i: self.play_blow(i),

            )


            self.buttons[(i,"blow")] = blow_button

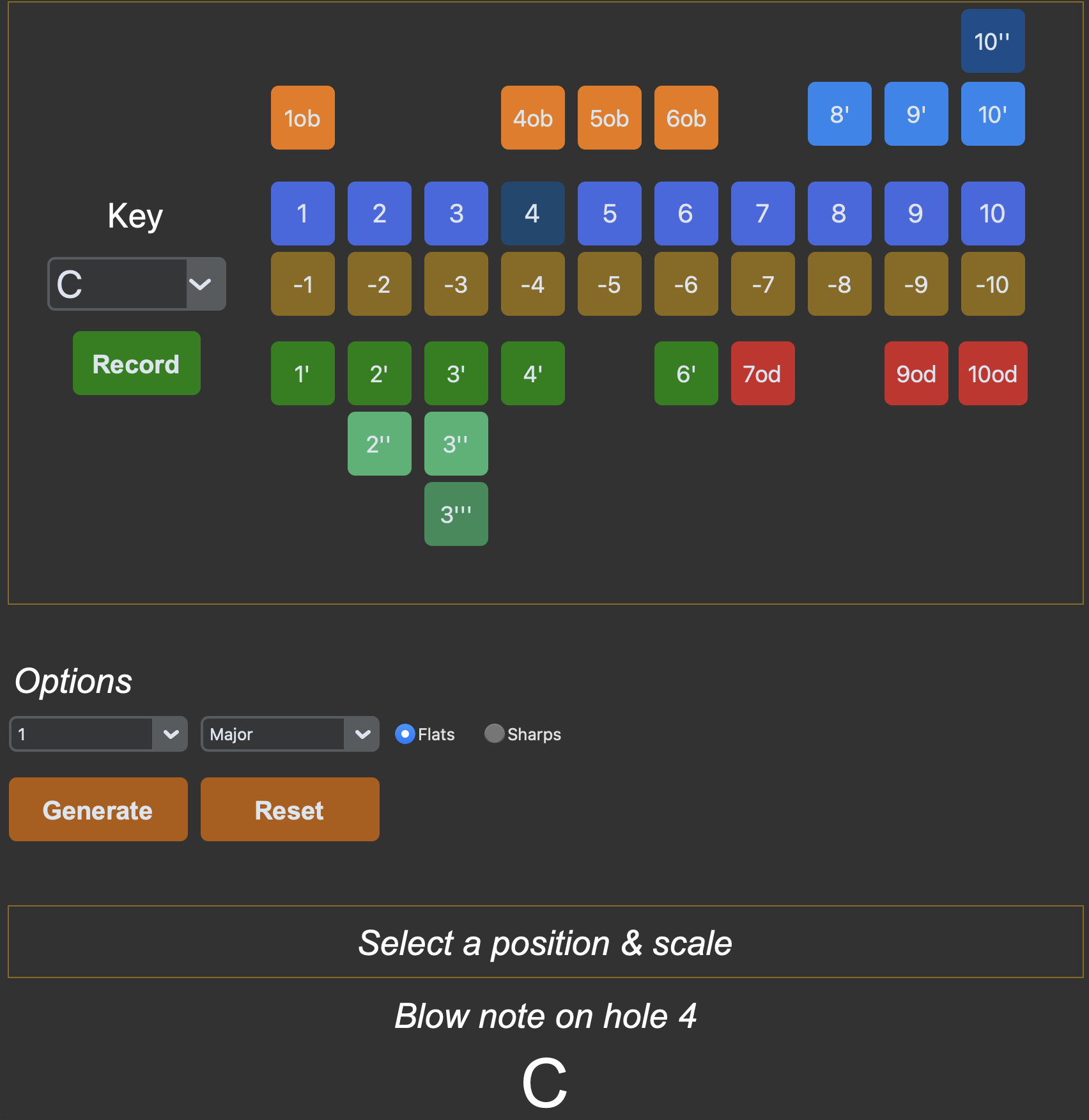

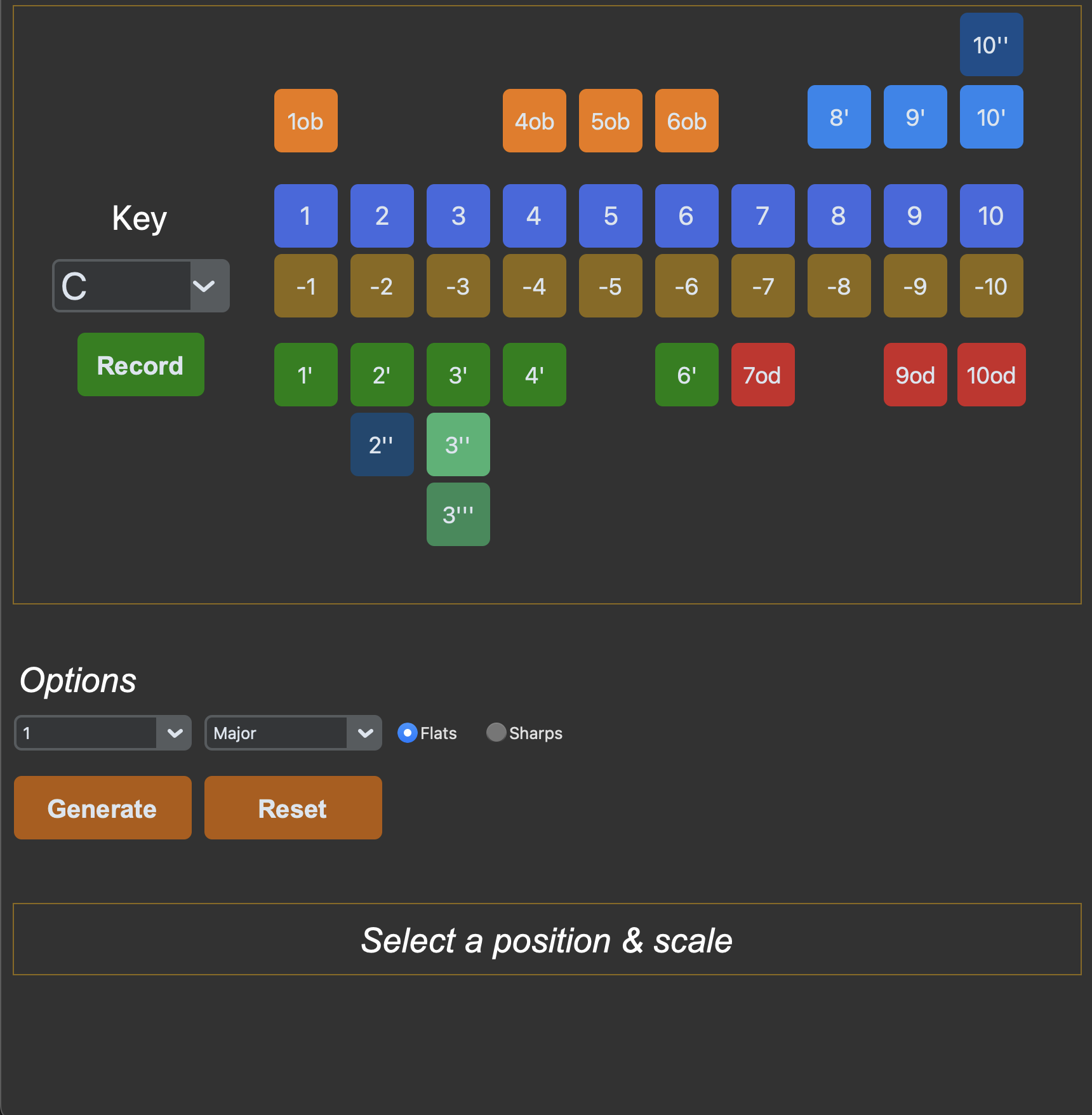

After playing with tkinter’s frames, grids and labels, this is the resulting layout. Clicking any button will give you the action associated to the hole and the note. There’s also a record function that just writes harmonica notation to a text file.

Blow Note



Guitar Gui Class



Turning a fretboard into a list of lists

Each guitar string can be represented as a Python list starting at different indices. Every item (fret) repeats itself after every 12 frets; that’s 12 half-steps which is an octave. The fretboard then represents a list of lists.


GUITAR_STRINGS = ["E", "B", "G", "D", "A", "E"]
NOTES = ["C","C#/Db","D","D#/Eb","E","F","F#/Gb","G", "G#/Ab","A","A#/Bb","B"]
fretboard = []
# Get 12 notes + extras for every string
for guitarString in GUITAR_STRINGS:
	notes =
    NOTES[NOTES.index(guitarString) :] +
    NOTES[: NOTES.index(guitarString) + 1] +
   [NOTES[(NOTES.index(guitarString) + i) % len(NOTES)] for i in range(1, 4)]


	fretboard.append(notes)

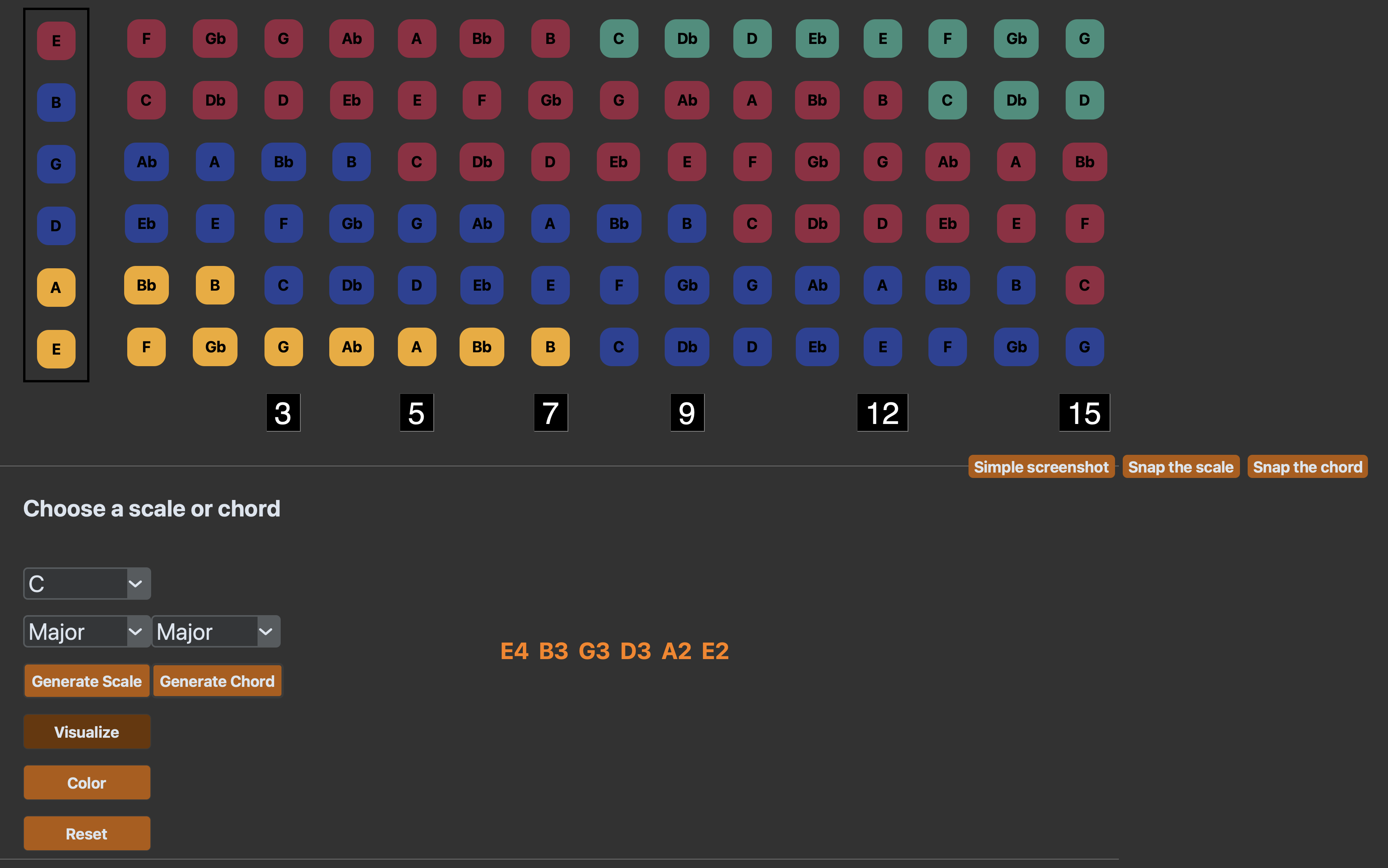

Scales on the guitar

Using the generate_scale function from the Key class, we can color the buttons on the fretboard if they’re present in the scale. The buttons this time are also stored in a dictionary like harmonica GUI, but this time the keys are based on (i,j): i being the guitar string number and j being the fret number. I’ve also done the same for chords, but it isn’t shown here.

def scale_color_mapper(self):
        scale_key = Key(self.key)
        scale = scale_key.generate_scale(self.scale_name)


        for i, guitarString in enumerate(self.fretboard):
            for j, fret in enumerate(guitarString):
                # Check if the fret matches the tonic (root note of the scale)
                if fret == self.key:
                    self.update_color(self.buttons[(i, j)], "turquoise")
                # Check if the fret is in the scale and color based on the degree
                elif fret in scale:
                    # Find its position in the scale
                    self.update_color(self.buttons[(i, j)], COLORED_NOTES[fret])
                else:
                    self.update_color(self.buttons[(i, j)], UNCLICKED_COLOR)

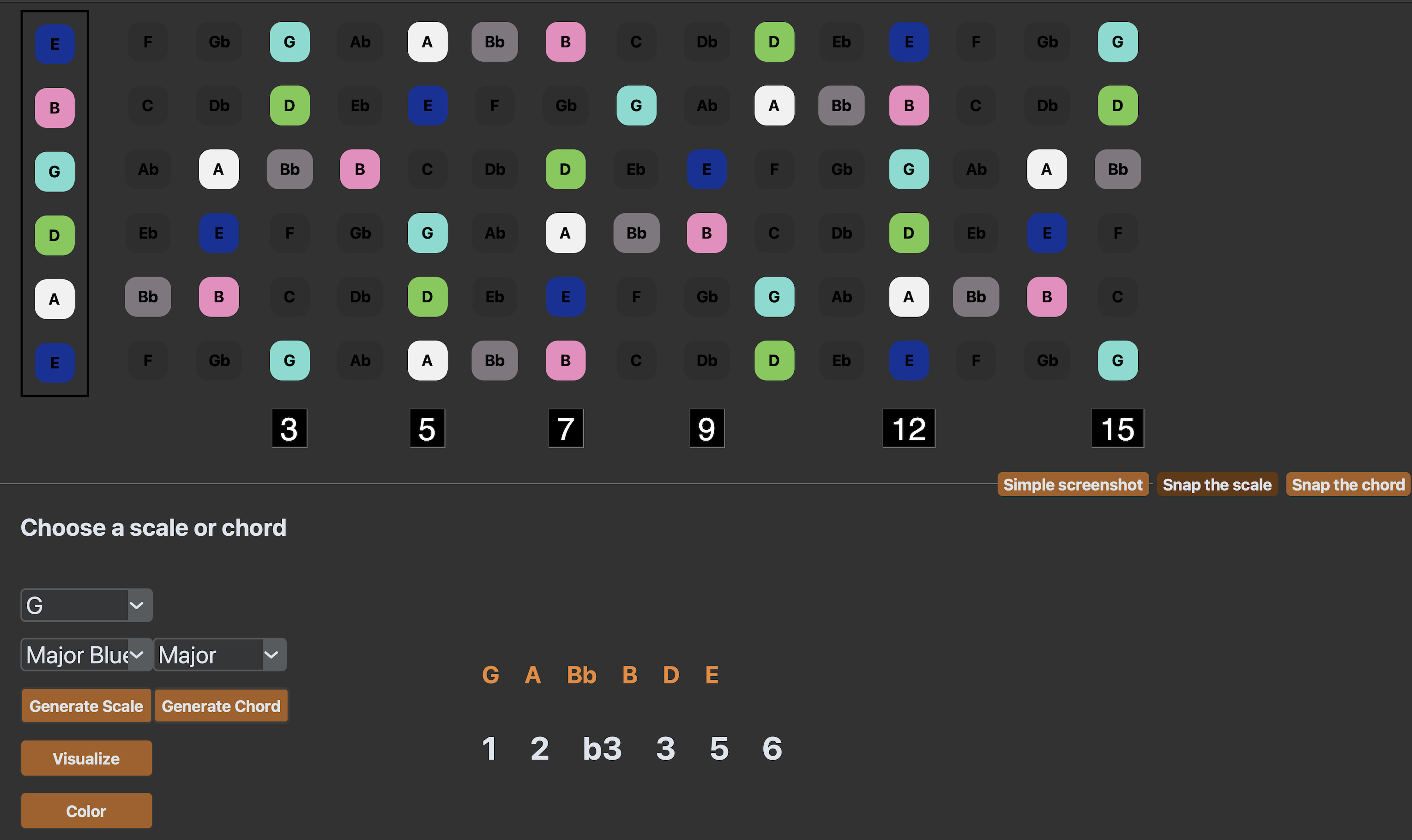

G Major Blues

Extras

  I’ve included other features like:

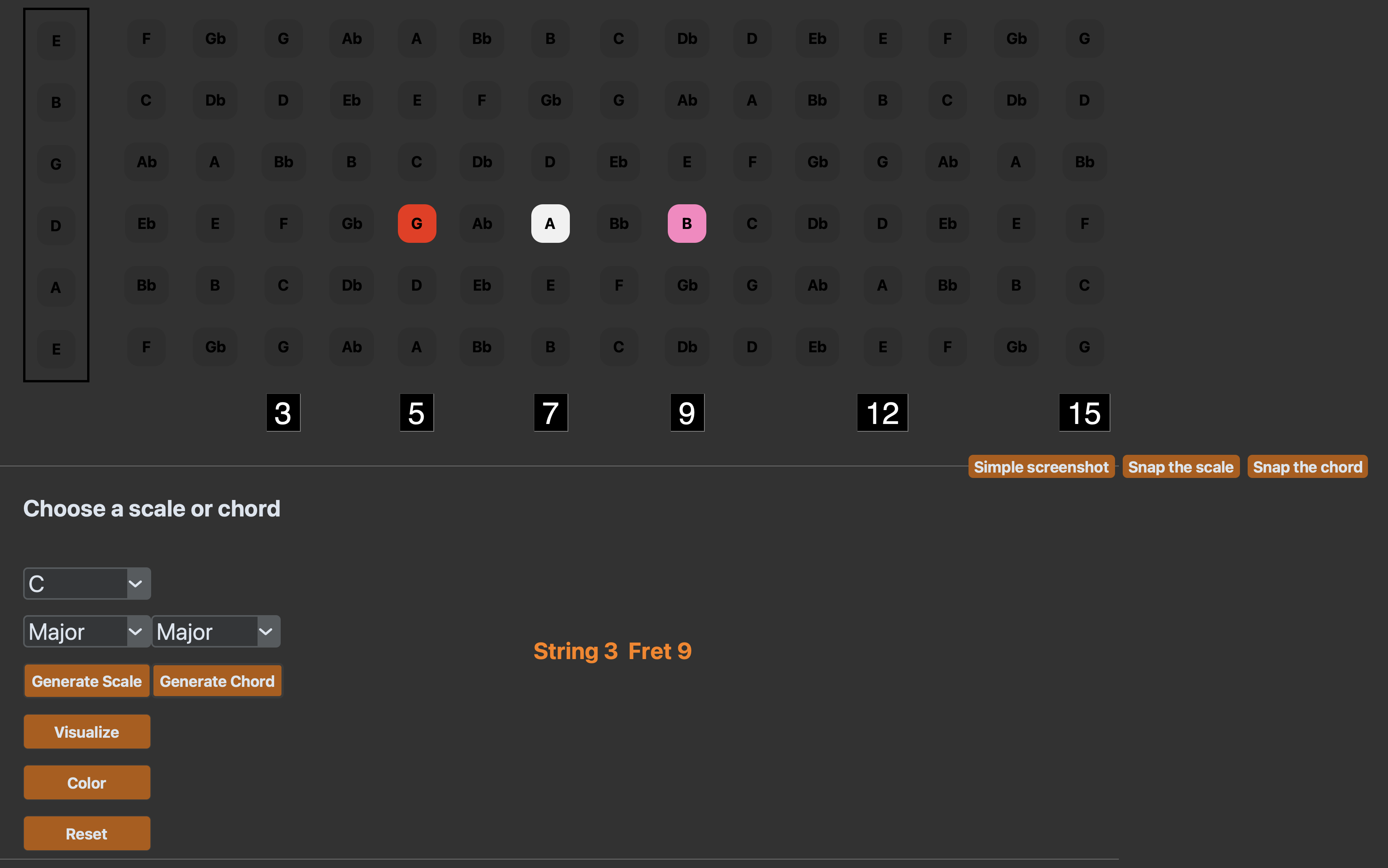

Guitar to Piano



Color the fretboard



Takeaways
